MEDIUM VOLTAGE SWITCHGEAR

AIR INSULATED SWITCHGEAR

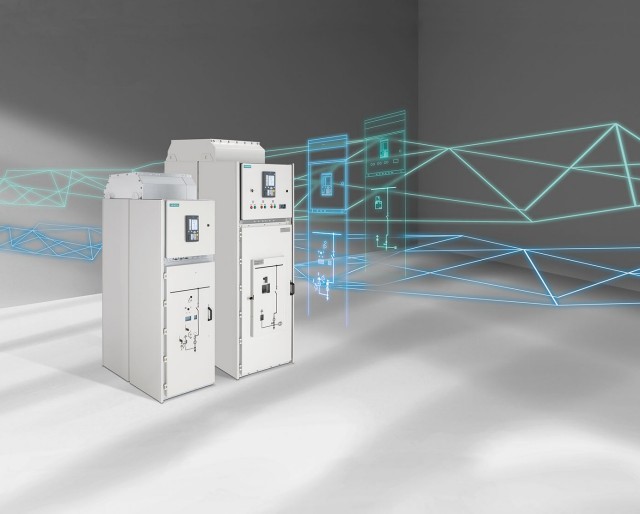

NXAIR

NXAIR is a metal-enclosed, factory-assembled and type-tested medium voltage switchgear according to IEC 62271-200 for indoor application up to 36 kV. NXAIR is internal arc classified switchgear according to IAC A FLR up to 50 kA for 1 s arc duration.

Key Features
  • Factory-assembled, type-tested switchgear according to IEC 62271-200 or VDE 0671-200
  • Use of standard components available worldwide, locally manufactured components, considering regional standards
  • Use of maintenance-free vacuum circuit-breakers or contactors
  • Pressure-resistant partitions
  • Flexibility regarding the low-voltage equipment (removable compartment, plug-in wires)
  • Metallic enclosure, earthed shutters and partitions
  • Internal arc classified switchgear according to IAC A FLR (front, lateral and rear accessibility) for all short-circuit currents and an arc duration of 1 s
  • Loss of service continuity category LSC 2B (separate partitioning of the busbar, connection and switching-device compartments)
  • Partition class PM (metal-clad in pressure-resistant design)
  • Easy access to all panel components
  • Interruption of operation reduced to a minimum by logical mechanical interlocking system

Click Here For More Information

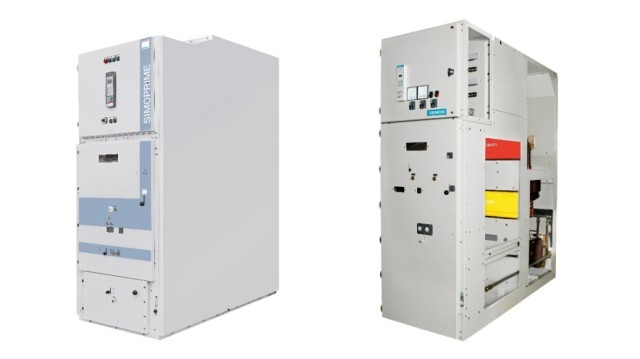

SIMOPRIME

SIMOPRIME medium-voltage switchgears offers the perfect combination of technology, reliability, quality, and service. The air-insulated switchgears can be ideally combined with SION vacuum circuit breakers and is type-tested for indoor installation in accordance with IEC 62271-200.

Key Features
  • Factory assembled, type‐tested switchgear according to IEC 62271‐200
  • Use of high quality, world-wide available components
  • Design based on global best practice and 50 years of experience
  • Interlockings between high‐voltage door and switching devices
  • Rack‐in, rack‐out operations of the circuit‐breaker truck with high‐voltage door closed
  • Metallic, earthed shutters and partitions, partition class: PM (metallic partition)
  • Use of metallic, earthed shutters and partitions between the compartments
  • Highest loss of service continuity of the switchgear (LSC2B according to IEC 62271‐200) during Maintenance
  • Use of maintenance‐free vacuum circuit breakers
  • Easy production of SIMOPRIME switchgear due to basic design without need of complex jigs and fixtures
  • Safe operation due to high-voltage door closed during all switching operations, including emergency manual operations
  • Peace of mind due to fail-safe operation
  • Siemens product DNA
  • Tens of thousands air-insulated, medium-voltage SIMOPRIME switchgears in operation world-wide prove that technologically sophisticated solutions can be efficiently implemented with the SIMOPRIME switchgear

Click Here For More Information

GAS INSULATED SWITCHGEAR

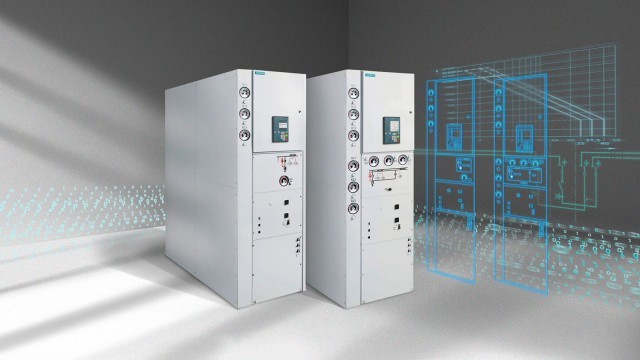

8DA10

The Siemens 8DA and 8DB range of fixed circuit-breaker switchgear for indoor installation comprises several factory-assembled, type-tested, models of compact gas-insulated medium-voltage switchgear. All models are single-pole metal-enclosed and equipped with metallic partitions to ensure reliable operation and a high degree of personal as well as operational safety. The Siemens 8DA10 gas-insulated switchgear model is suitable for single-busbar applications. The Siemens 8DB10 gas-insulated switchgear model suits to double-busbar applications

Key Features

Gas-insulated medium-voltage switchgear up to 40.5 kV, 40 kA (3s)

  • up to 5000 A busbar, up to 3150 A feeder
  • Metal-enclosed
  • Single-busbar system
  • Hermetically enclosed
  • Factory-assembled, routine-tested according to IEC 62 271-200
  • Type-tested according to IEC 62 271-200
  • Safe, secure, and reliable operation
  • Personal safety
  • Environmental independence
  • Compactness
  • Maintenance-free design
  • Cost-efficiency
  • High environmental compatibility

Click Here For More Information

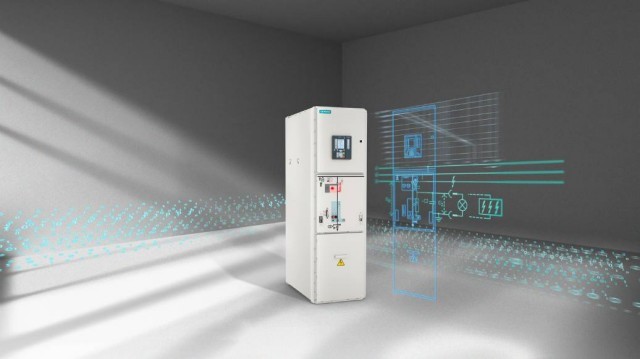

NXPLUS-C

The factory-assembled, type-tested Siemens NXPLUS C fixed circuit-breaker switchgear for indoor installation is a particularly versatile metal-enclosed, gas-insulated medium-voltage switchgear with metallic partitions that enables flexible system design.

Key Features
  • Safe-to-touch and hermetically sealed primary enclosure
  • Welded switchgear vessels made of stainless steel
  • Standard degree of protection IP65 for all high-voltage parts in the switchgear vessel
  • All high-voltage parts including the cable terminations, busbars and voltage transformers are metal-enclosed
  • Sealed-for-life design according to IEC 62271-200 (sealed pressure system)
  • Installation, operation, extension and replacement without SF6 gas work

Click Here For More Information

8DJH

8DJH Compact switchgear is a factory-assembled, type-tested 3-pole metal-enclosed single-busbar switchgear for indoor installation.

Key Features
  • Safe-to-touch and hermetically sealed primary enclosure
  • Welded switchgear vessels made of stainless steel
  • Standard degree of protection IP65 for all high-voltage parts in the switchgear vessel
  • All high-voltage parts including the cable terminations, busbars and voltage transformers are metal-enclosed
  • Sealed-for-life design according to IEC 62271-200 (sealed pressure system)
  • Installation, operation, extension and replacement without SF6 gas work

Click Here For More Information
